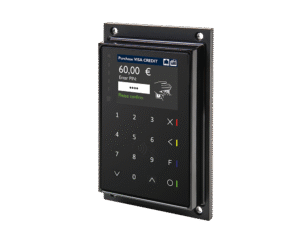

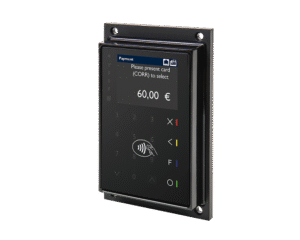

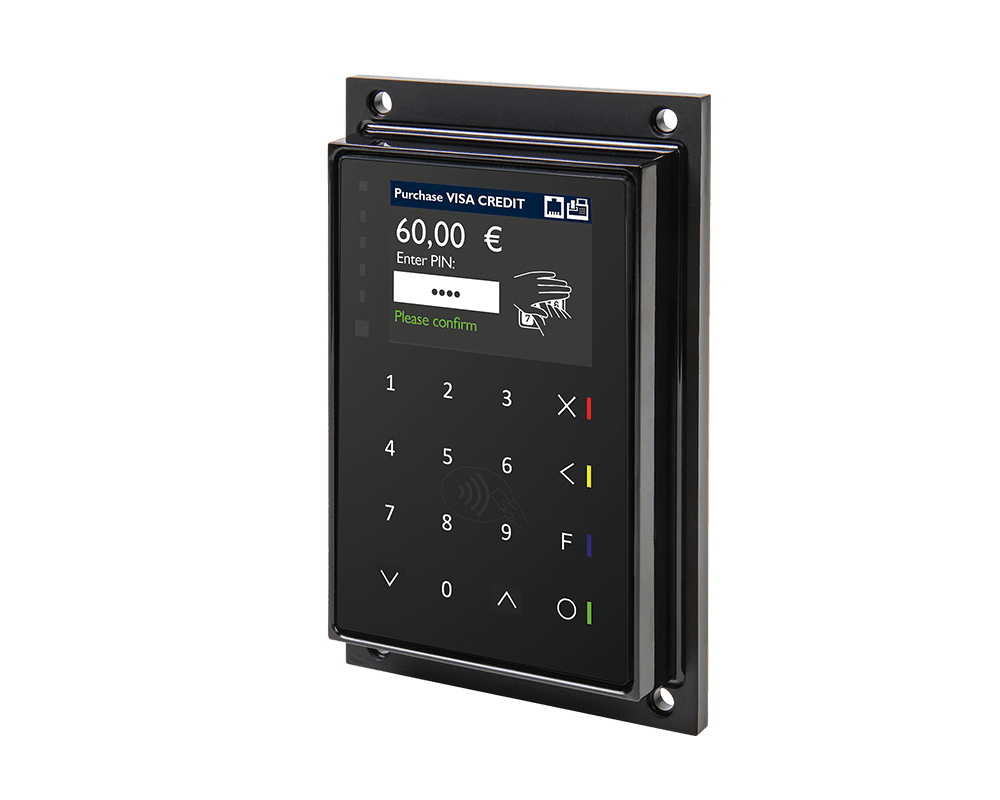

cVEND touch S
ProductsGood arguments in favor of the cVEND touch S
Payment and PIN entry in one device
Compatible installation with cVEND PIN
Highest level of vandalism protection
Intuitive user interface for barrier-free PIN entry and contactless payment
Product description
The newest member of the proven cVEND terminal family is called cVEND touch.
cVEND touch S uniquely combines clear design and contactless chip & PIN payment at charging stations, parking ticket machines, stationary and mobile ticket machines, and vending machines. Its mechanical design allows a quick and easy installation in any machine front. Mechanical compatibility with cVEND PIN provides smooth integration and flexibility when choosing between cVEND touch S and cVEND PIN – depending on your needs.
A robust and bright color display and the seamless front pane enable outdoor use in public areas and offer optimal user guidance. cVEND touch makes Tap & Go with optional PIN entry fast and easy. Barrier-free operation is guaranteed.
The low power consumption in standby mode also allows use in battery-powered machines.
Software configurations for global use cases
cVEND touch S is available in various software configurations. Choose the version that best suits your requirements!
Platform for developing your own software applications
Are you looking for a platform to develop your own app? Our solutions enable the development of open-loop or closed-loop applications. We offer:
Global
Customized with your own app and keys
L2
Global
Prepared for remote loading of your own app and keys
generic
Technical specifications
Housing
Laminated safety glass (LSG) with integrated display and terminal electronics, Plastic flange
Dimensions (W x H x D)
Total: 93 mm x 144 mm x 48,6 m, Visible: 82 mm x 120 mm x 14 mm
Environmental conditions
Operation: -30 °C to +70 °C, Storage: -30 °C to +80 °C, Air humidity: 5 % to 95 % condensing, Moisture-repellant coating
Power supply
10 to 30 V DC, Connection via MDB
Power consumption
Operation: typ. < 15 W, Standby: < 10 mW, Wake-up: digital input, card detection, timer
User interface
2,4“ TFT color display 850 cd/m², 320 x 240 Pixel, 4 green LED, internal multi-frequency buzzer , audio output, sensor for brightness control
Scanner
QR-Code, DataMatrix, Aztec
Keyboard
Illuminated capacitive keypad with 16 keys, audio user guidance for barrier-free operation
