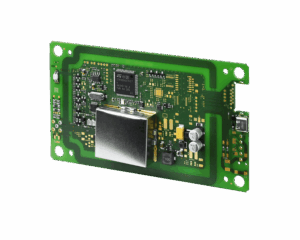

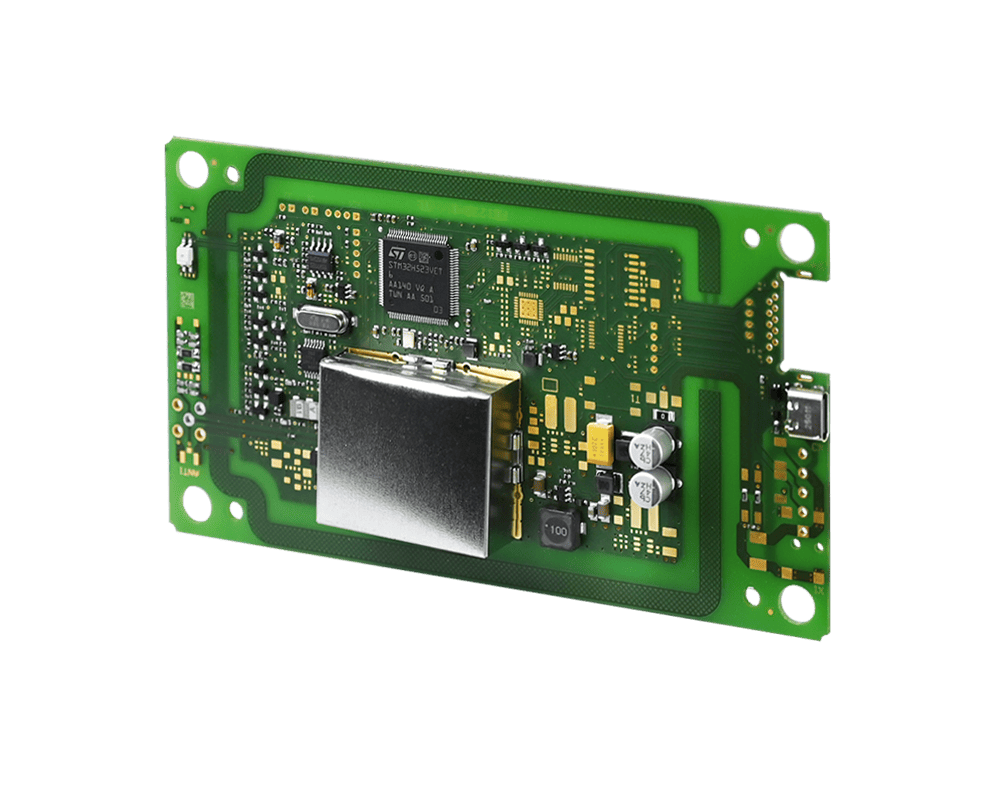

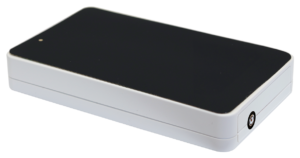

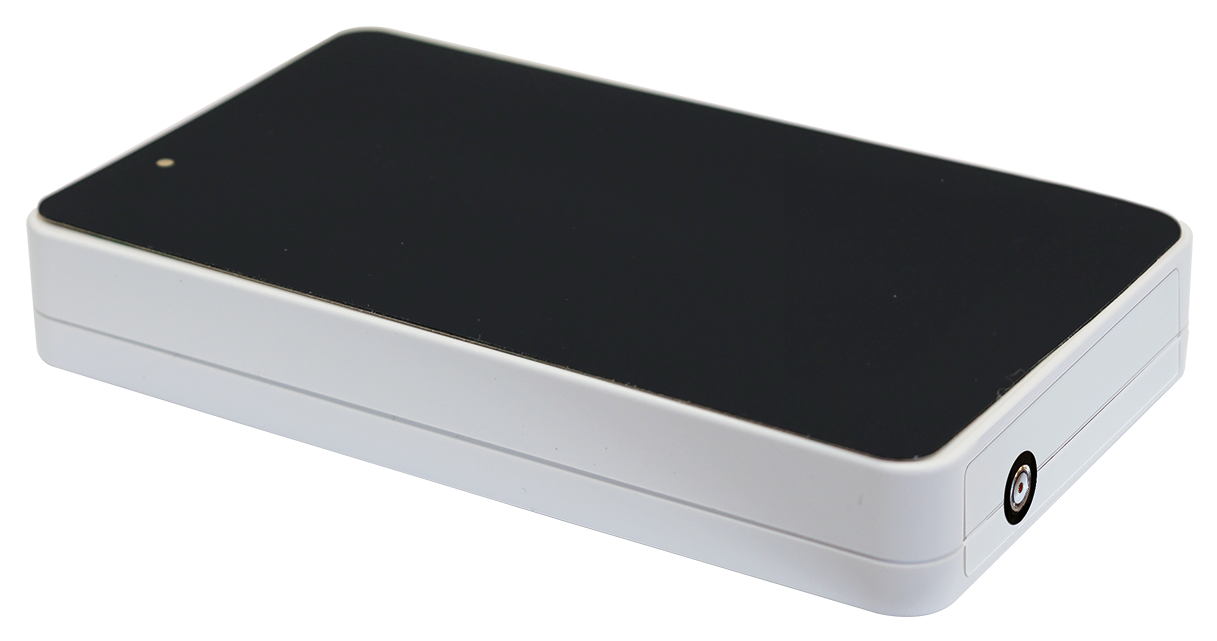

ID PR103/PRM103
Anti-collision function
Integrated Antenna
Product description
For identification of 13.56 MHz transponders
- Dimensions 145 x 85 x 22mm / 4.72 x 3.35 x .866 inch (WxHxD)
- Suitable Antennas:
ID ANT40/30 antenna module - ID ANT240/180-A
- ID ANTS240/180-A
ID ANT100/100 antenna module
ID ANT 340/240 A and B Pad Antenna
ID ANT 310/310 Loop Antenna
ID ANTS370/270 Shielded Pad Antenna - Interfaces: Ethernet, USB or RS232
- Supply voltage: typical 12…24 V DC or Power over Ethernet
- Transponders: ISO15693, ISO18000-3-Mode1
Examples of use
- Library
- Medical
- Logistics
- Industrial
Special features
- Anti-collision function
- Scan Mode, FEIG ISO HOST Mode
- 1.5W RF Output Power
- Available as a module our housed unit
- Compatible with the previous PR101
Technical specifications
Dimensions (w x h x d)
85 mm x 145 mm x 22 mm
Weight
130 g (housed, 50g (module)
Housing
Plastic ABS
Color
Plastic ABS
Protection class
IP30
Operating frequency
13.56 MHz
Transmitting power
0.6 W ± 2 dB
Power supply
5 V DC/1.5 A
